Real Time Cell Analyzer

xCELLigence Real-Time Cell Analyzer

The xCELLigence® RTCA instrument uses noninvasive electrical impedance monitoring to quantify cell proliferation, morphology change, and attachment quality in a label-free, real-time manner. The instrument is placed in a standard CO2 cell culture incubator and interfaces via a cable with analysis and control units that are housed outside the incubator. User friendly software allows for real-time control and monitoring of the instrument, and includes real-time data display and analysis functions.

By skipping the guesswork associated with end-point assays and eliminating the time- and labor-intensive steps of traditional cell-based assays, real-time cell analysis (RTCA) with the xCELLigence® RTCA vastly improves efficiency and overall productivity. By eliminating the need for labels/dyes, the physiological relevance of acquired data is maximized.

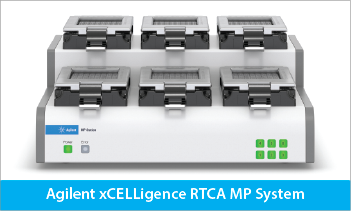

RTCA MP

Non-Invasive and Label-Free Monitoring of Cells

The xCELLigence Real-Time Cell Analysis (RTCA) instruments utilize patented microtiter plates (E-Plates®) which contain gold biosensors embedded in the bottom of each well. These biosensors continuously and non-invasively monitor changes in cell number, cell size, cell barrier function, and cell-substrate attachment quality.

Within E-Plate wells adherent cells act as insulators, restricting the flow of a miniscule electric current between the biosensors. This signal is measured automatically, at a frequency defined by the user (every 10 seconds, once per hour, etc.), and provides a dynamic view of cell health and behavior at an unprecedented level of detail.

Compatible with a Wide Range of Cell-Based Assays

Because dynamic changes in cell number, cell size, cell barrier function, and cell-substrate attachment quality are influenced by a large number of biochemical pathways, xCELLigence can be used for dozens of different applications. These include, but are not limited to:

  • Immune cell killing
  • Cell invasion and migration
  • Cardiotoxicity testing
  • Drug discovery/development
  • Receptor signaling
  • Virus cytopathic effects
  • Biofilm dynamics
  • Cell-cell interactions

xCELLigence Real-Time Cell Analyzer

The xCELLigence® RTCA instrument uses noninvasive electrical impedance monitoring to quantify cell proliferation, morphology change, and attachment quality in a label-free, real-time manner. The instrument is placed in a standard CO2 cell culture incubator and interfaces via a cable with analysis and control units that are housed outside the incubator. User friendly software allows for real-time control and monitoring of the instrument, and includes real-time data display and analysis functions.

By skipping the guesswork associated with end-point assays and eliminating the time- and labor-intensive steps of traditional cell-based assays, real-time cell analysis (RTCA) with the xCELLigence® RTCA vastly improves efficiency and overall productivity. By eliminating the need for labels/dyes, the physiological relevance of acquired data is maximized.

RTCA MP

Non-Invasive and Label-Free Monitoring of Cells

The xCELLigence Real-Time Cell Analysis (RTCA) instruments utilize patented microtiter plates (E-Plates®) which contain gold biosensors embedded in the bottom of each well. These biosensors continuously and non-invasively monitor changes in cell number, cell size, cell barrier function, and cell-substrate attachment quality.

Within E-Plate wells adherent cells act as insulators, restricting the flow of a miniscule electric current between the biosensors. This signal is measured automatically, at a frequency defined by the user (every 10 seconds, once per hour, etc.), and provides a dynamic view of cell health and behavior at an unprecedented level of detail.

Compatible with a Wide Range of Cell-Based Assays

Because dynamic changes in cell number, cell size, cell barrier function, and cell-substrate attachment quality are influenced by a large number of biochemical pathways, xCELLigence can be used for dozens of different applications. These include, but are not limited to:

  • Immune cell killing
  • Cell invasion and migration
  • Cardiotoxicity testing
  • Drug discovery/development
  • Receptor signaling
  • Virus cytopathic effects
  • Biofilm dynamics
  • Cell-cell interactions

xCELLigence Immunotherapy Kit

xCELLigence® Immunotherapy Kits:

Monitor the Efficacy of Liquid Cancer Immunotherapies inside your incubator

Use xCELLigence Immunotherapy Kits with your real-time cell analysis (RTCA®) system for a non-invasive solution to a broad range of liquid cancer immunotherapies and suspension tumor cell killing applications.

  • Label-Free: Allowing for more physiological assay conditions; labeling or secondary assays aren’t required
  • Real-Time: Quantitative monitoring of both fast (hours) and slow (days) killing kinetics
  • Sensitive: Capable of evaluating low effector cell to target cell ratios that are physiologically relevant
  • Simple Workflow: Requires only the addition of effector cells to target cells (in the presence or absence of antibodies); homogeneous assay without additional sample handling
  • Automatic Data Plotting: RTCA software Pro enables facile data display and objective analysis, precluding the subjective data vetting that is common to imaging-based assays
